KEMPOWER T-Series
KEMPOWER T-Series
Up to 40kW DC
- Simultaneous dual charging
- 500V DC to 800V DC
- IP54 (outdoor application) / IK10
- Cloud connection for wireless software updates and management
- Suitable for most common charging standards
Features
Find out why you should choose this charger
Remote access
Heavy duty applications
Fleet operators
T-Series the most advanced mobile charger in the market

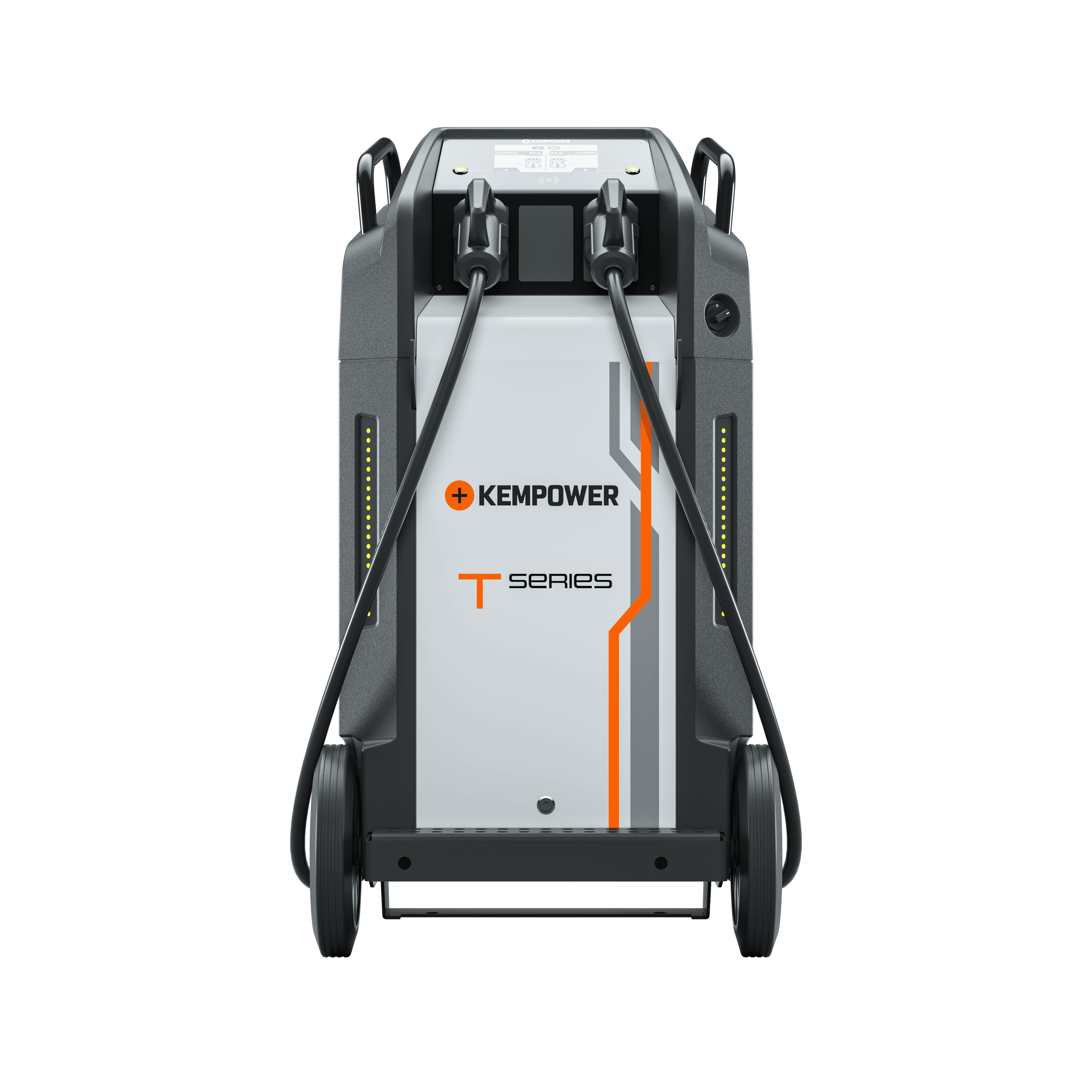

T-Series is a portable and easily movable DC charging station for electric vehicles. Instant charging power for when and where you need it the most. Available for 500V and 800V systems. Able to provide 40kW on a single outlet or share 20kW if two outlets are used.
Technical specifications
Find out why you should choose this charger
- Nominal input current 32A and 63A
- Input frequency 50 - 60 Hz
- Efficiency 95% at nominal output
- Maximum output power 40kW DC
- Maximum output current 70A - 90A
- Output voltage range 150V - 800V
- DC connection standard CCS, CHAdeMO
- DC cable length 5 meters
- Compliant to *IEC 61851 series"
- Weight 120kg
- Dimensions 540x530x1200
- Cooling Forced air
The Kempower T-series is a movable EV charger suitable for electric cars, commercial electric vehicles, electric trucks, lorries, vans, buses, and off-highway vehicles. All you need is your EV and electricity, and you are good to go. Plug the charger into the industrial wall socket, and you are ready to charge.
- Grid Connection Wall socket compliant to IEC 60309-2 or as specified by your local requirements
